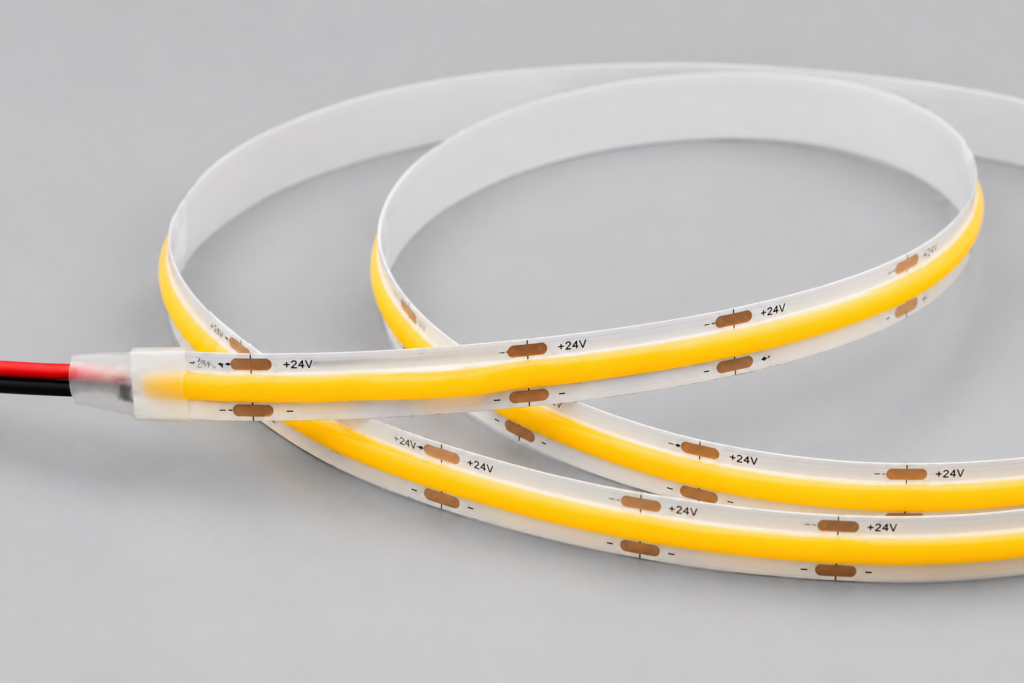

How to Design an LED Strip PCB?

LED strip PCB design can become expensive when a team moves from a reference product to tooling without clarifying its real objective. Small misunderstandings about materials, cutting units, or production methods can create major problems later. I reduce that risk by treating design as a collaborative path from requirement analysis to verified mass production.

To design an LED strip PCB for commercial production, I first define whether the goal is reproduction, cost optimization, performance improvement, or process adaptation. The engineering team then evaluates the reference, materials, circuit structure, cutting units, and manufacturing method before confirming drawings, building prototypes, preparing tooling, and conducting pilot production.

This guide does not teach PCB layout software or circuit formulas. Instead, I explain how I work with manufacturers to transform existing files, samples, and product concepts into manufacturable flexible circuits, especially for continuous Roll-to-Roll production.

What Information Is Needed to Design an LED Strip PCB?

A custom project can stall when the supplier receives only a photograph or a vague request to “make the same board.” That uncertainty affects the design direction, quotation, and schedule. I therefore begin by collecting the reference information and identifying what the customer actually wants to achieve.

Most commercial LED strip PCB projects start with an existing PCB, Gerber file, CAD drawing, physical strip sample, or product specification. I use that reference to verify dimensions, circuit arrangement, components, cutting intervals, materials, and production objectives. A complete original design is helpful, but it is not always required.

Start With the Best Available Reference

In many custom projects I support, the customer does not begin with a blank drawing. The customer usually provides one or more of the following:

• An existing flexible PCB design
• Gerber manufacturing files
• CAD drawings
• A dimensioned PDF
• A physical LED strip sample
• A bill of materials
• Product photographs
• Electrical and installation requirements
• A competing product for evaluation

Each reference answers different questions. A Gerber file can show the existing copper pattern and board structure¹, while a physical sample can reveal practical details that a drawing may not communicate clearly. These details can include component positioning, solder joints, adhesive use, cutting marks, strip flexibility, and the relationship between the circuit and the finished product.

I do not assume that a supplied reference is ready to copy. I first ask what role it should play in the new project. A customer may provide a sample because they like its appearance, but they may want a different voltage, LED density, board width, cutting length, or manufacturing cost.

Clarify the Product Specification

I normally organize the initial information into a structured requirement list:

Requirement	Typical information to confirm	Why it matters
Working voltage	Low-voltage or high-voltage architecture	Influences the circuit arrangement and component plan
Strip width	Finished FPCB width	Affects routing space and downstream processing
LED package	Package type and dimensions	Determines pad geometry and component placement
LED density	LEDs per meter	Affects spacing, circuit repetition, and visual output
Copper thickness	Requested or evaluated value	Influences current-carrying needs and production planning
Cutting unit	Length of each cuttable section	Affects circuit repetition and installation
Roll length	Target production or finished-product length	Influences process selection and interconnection planning
Substrate	PI or PET	Affects production methods and tooling decisions
Downstream process	SMT, reflow, extrusion, or potting	Helps us review process compatibility
Environmental needs	Indoor, outdoor, or waterproof use	Influences materials and later assembly requirements

The customer does not always know every answer during the first discussion. In that situation, I separate confirmed requirements, preferred requirements, and open engineering questions. This simple distinction helps prevent an early assumption from becoming an unintended production specification.

I treat the first inquiry as the beginning of engineering communication, not as an automatic instruction to copy the supplied board.

Should an Existing LED Strip PCB Be Copied or Optimized?

A request for an identical replacement often hides a different business need. The buyer may actually want a lower cost, longer production length, easier assembly, or fewer field problems. If I copy too early, the new board can preserve limitations that the customer wanted to remove.

An existing LED strip PCB should be copied only when a true one-to-one replacement is the confirmed goal. Otherwise, I recommend evaluating design alternatives for manufacturability, component use, cutting convenience, production length, and process compatibility. The correct direction depends on the customer’s priorities rather than on the reference board alone.

Ask What Success Looks Like

Before recommending a design direction, I ask questions such as:

1. Does the new product need to match the original dimensions exactly?
2. Does it need to fit existing connectors, profiles, or housings?
3. Is the main objective to reduce production cost?
4. Does the customer want to move from panel manufacturing to Roll-to-Roll production?
5. Does the product need a different cutting interval?
6. Does the team want to change the LED package or density?
7. Has the original product experienced assembly or installation problems?
8. Does the new strip need to support extrusion, potting, or another waterproofing process?

These questions determine whether reproduction or optimization is appropriate. A one-to-one copy may be important when the board must remain compatible with an approved product structure. In contrast, a revised circuit may be more suitable when the customer is creating a new product or changing the manufacturing process.

Compare More Than One Design Direction

When the project allows optimization, an engineering team may provide multiple concepts rather than forcing every priority into one design. The options can focus on different goals:

Design direction	Main purpose	Important trade-off to review
Direct reproduction	Preserve the existing structure	Existing limitations may remain
Cost-oriented option	Simplify the design where appropriate	Performance and process requirements still need verification
Manufacturing-oriented option	Improve compatibility with the selected process	The layout may differ from the reference
Installation-oriented option	Improve cutting or connection usability	Component spacing and circuit repetition may change
Product-oriented option	Support a new voltage, density, or format	More validation may be required

I avoid describing any optimization as universally better. For example, reducing component quantity may appear attractive, but it is only appropriate if the electrical architecture, product behavior, and manufacturing process support the change. Likewise, a simpler-looking routing pattern is not automatically easier to manufacture.

In my experience, the most productive discussions happen when the customer ranks priorities. A team that ranks quality stability, compatibility, and cutting convenience above unit cost will make different decisions from a team that needs an economical product for a price-sensitive market.

How Does Manufacturing Affect LED Strip PCB Design?

A circuit may look correct in a drawing but remain unsuitable for the intended production line. This mismatch becomes especially important when a company converts a panel-based PCB into a continuous flexible circuit. I therefore review the manufacturing method before treating the layout as final.

LED strip PCB design must match the selected manufacturing process. Panel production and continuous Roll-to-Roll production use different material handling, routing, interconnection, registration, and tooling approaches.² Converting a panel board into a continuous roll is not simply a matter of extending its length; the repeating circuit structure may require redesign.³

Panel and Roll-to-Roll Production Are Not Identical

A panel process handles circuits in defined sheet or panel dimensions. A Roll-to-Roll process handles flexible material continuously through multiple production operations. The finished products may perform a similar function, but the manufacturing logic differs.

The engineering review may consider:

• How the circuit repeats along the roll
• How individual production sections connect
• How the material moves through equipment
• Where cutting and registration features are located
• Whether the routing supports the intended continuous length
• How tooling aligns with the material
• How later SMT and separation processes will handle the circuit
• Whether interconnection methods are compatible with the product structure

I pay particular attention when a customer says, “Please make this panel design into a 50-meter or 100-meter roll.” The requested length alone does not define the solution. The engineering team still needs to understand the circuit repetition, process limitations, interconnection method, and downstream assembly conditions.

Design for the Whole Production Flow

A flexible circuit does not exist in isolation. It usually passes through several downstream operations after PCB manufacturing. Depending on the product, these operations may include:

1. Solder paste printing
2. SMT component placement
3. Reflow soldering
4. Electrical testing
5. Board separation or slitting
6. Adhesive application
7. Extrusion or sleeving
8. Potting or coating
9. Cutting and connector assembly
10. Final roll preparation

A circuit feature that works during bare-board production can still cause difficulty during SMT or waterproofing. For this reason, I ask how the customer plans to manufacture the completed LED strip, not just how they want the bare FPCB supplied.

The design review may also examine component orientation, pad positions, board edges, cutting marks, and usable process margins. These decisions should come from the actual production plan. They should not come from appearance alone.

I have seen early project discussions focus heavily on the copper drawing while leaving the later assembly process undefined. I now raise those questions sooner because the selected reflow, slitting, extrusion, or potting process can affect what the PCB manufacturer should prepare.

How Can an LED Strip PCB Improve Cutting and Installation?

An electrically functional strip can still frustrate installers if cutting marks are unclear or usable cutting space is too limited. These problems can lead to incorrect cuts, damaged pads, or visible gaps. I therefore include end-user handling in the engineering discussion instead of reviewing only electrical operation.

An LED strip PCB can improve installation by using clear cutting units, practical pad positions, consistent LED spacing, and adequate cutting tolerance. The engineering team may also evaluate component orientation and circuit repetition to reduce cutting mistakes and visible dark areas, provided that the electrical and manufacturing requirements allow those changes.

Consider the Person Who Cuts the Strip

LED strips are often cut and connected outside the original factory. An installer may work inside a cabinet, on a building outline, or near an aluminum profile. The installer may not have precision production equipment.

The design should therefore communicate where cutting is permitted. The engineering team can evaluate:

• Visibility of cutting marks
• Distance between the cutting line and nearby components
• Size and position of solder pads
• Access for connectors or hand soldering
• Repetition of positive and negative markings
• Uniformity of LED spacing across cutting boundaries
• Space required by the intended connector
• Alignment with profiles, channels, or finished-product modules

These details do not replace electrical validation. Instead, they add a usability layer to the PCB review.

Cutting Interval Is a Product Decision

The cutting unit affects both product flexibility and circuit design. A shorter cutting interval can give installers more placement options, but it can also change the circuit structure and component arrangement. A longer interval may simplify some layouts, but it can leave more unused strip at the end of an installation.

I normally ask the customer where the product will be used before discussing the cutting unit. Architectural lighting, cabinet lighting, signage, and decorative applications can have different practical needs.

Uniform LED spacing also deserves attention. If the distance between the last LED of one cuttable section and the first LED of the next section differs visibly from the normal pitch, the installed strip may show an uneven bright-dark pattern. The exact impact depends on the LEDs, diffuser, installation distance, and finished luminaire.

In some projects, an engineering team may evaluate a different LED orientation or pad arrangement to create more practical cutting space. I treat this as a project-specific option rather than a standard rule. The proposed arrangement must still pass electrical, assembly, optical, and manufacturing reviews.

A manufacturable circuit should serve the factory, but a successful product should also serve the installer and the final application.

Why Must Materials Be Confirmed Before LED Strip PCB Tooling?

A team may treat substrate selection as a purchasing decision that can wait until the drawing is complete. That delay creates risk because the material affects processing behavior and tooling. I therefore confirm the intended substrate before permanent production tools are finalized.

PI and PET flexible circuit materials have different physical and process characteristics.⁴ The selected material can influence dimensional behavior, temperature compatibility, handling, tooling, and downstream manufacturing.⁵ I recommend confirming the substrate, copper structure, and process requirements before tooling begins rather than substituting materials after design approval.

PI and PET Are Project Decisions

Polyimide, commonly called PI, and polyethylene terephthalate, commonly called PET, can both appear in flexible lighting circuits. However, they should not be treated as interchangeable labels.

The engineering discussion should consider:

• Intended electrical structure
• Temperature exposure during assembly
• Dimensional stability requirements
• Flexibility and handling needs
• Compatibility with the manufacturing process
• Compatibility with downstream reflow or other thermal processes
• Target product positioning
• Tooling and registration requirements
• Applicable material or compliance requirements

I do not recommend choosing between PI and PET based only on price. The completed strip must pass through the customer’s actual production flow. The substrate should therefore be reviewed together with the component plan, soldering method, adhesive structure, and finished-product application.

Why Timing Matters

Tooling is prepared for defined materials and manufacturing requirements. If the customer confirms one substrate during engineering and later changes to another, the manufacturer may need to re-evaluate dimensions, process settings, or tooling compatibility.

That is why I place material confirmation before permanent tooling in the project sequence. The timing prevents the team from investing in a production setup based on an incomplete specification.

A practical material confirmation can include:

Item	Confirmation question
Base substrate	Has the customer approved PI or PET?
Copper structure	Does it match the current and routing requirements?
Surface treatment	Is it compatible with soldering and storage needs?
Cover or insulation structure	Does it support the intended flexibility and pad exposure?
Adhesive requirement	Will tape be applied by the PCB supplier or later?
Thermal process	What temperatures will the circuit encounter downstream?
Compliance	Are RoHS-compliant material options or other documents required?

I also ask whether the customer already has approved material specifications. Mature LED strip manufacturers often need consistency with existing products, test records, or customer approvals. New manufacturers may need more guidance because they are still defining their complete bill of materials.

Material selection is not a final decoration added to a completed drawing. It is one of the inputs that shapes a production-ready flexible PCB.

How Is a Custom LED Strip PCB Verified Before Mass Production?

A drawing can appear complete while still containing a misunderstood dimension, cutting position, or material specification. Permanent tooling makes such mistakes more expensive to correct. I use staged confirmation so the customer and manufacturer can verify the design before committing to volume production.

A custom LED strip PCB is normally verified through engineering drawing approval, prototype fabrication, customer testing, tooling preparation, and pilot production. CAD or PDF drawings confirm the intended structure, while a laser-fabricated prototype can support early dimensional and assembly checks. Mass production begins only after the agreed verification stages are completed.

Drawing Approval Is an Engineering Milestone

After requirement clarification and design evaluation, the manufacturer normally provides a controlled drawing for review. Depending on the project, this package may include:

• CAD files
• Dimensioned PDF drawings
• Circuit repetition details
• Board width and overall dimensions
• Cutting-unit information
• LED and resistor pad locations
• Polarity markings
• Material notes
• Copper or structural requirements
• Special process notes

I ask the customer to check the drawing against the intended finished product, not only against the original sample. The customer should confirm whether the proposed design supports their LEDs, connectors, profiles, SMT process, cutting requirements, and product dimensions.

A signed or otherwise documented approval creates a shared technical baseline. It does not remove the need for prototype testing, but it ensures that both parties are discussing the same design revision.

Prototype Before Permanent Tooling

A laser prototype can help verify the circuit before permanent production tooling is manufactured. In some early evaluations, a 0.5-meter prototype may be sufficient to check dimensions, component placement, cutting units, and basic assembly compatibility. The necessary prototype length depends on what the team needs to test.

The customer may use the sample to review:

• PCB width and fit
• LED and resistor pad geometry
• Component orientation
• Cutting marks and solder pads
• SMT placement feasibility
• Basic lighting operation
• Spacing and visual uniformity
• Compatibility with profiles or housings
• Extrusion or potting feasibility

The prototype does not automatically represent every characteristic of full-scale Roll-to-Roll production.⁶ Its main purpose is to identify design issues before the project invests in permanent tools.

Tooling Supports Different Production Tasks

Custom tooling is not a single generic item. Different production operations may require tools for forming, alignment, cutting, registration, testing, or other process steps. The exact tooling package depends on the circuit structure and selected manufacturing method.

After tooling is ready, I recommend pilot production before unrestricted mass production. A pilot run can reveal issues that a short prototype may not show, including continuous processing behavior, alignment consistency, downstream SMT handling, and repeatability across a longer production length.

The complete development path usually looks like this:

Customer Inquiry

↓

Requirement Discussion

↓

Engineering Evaluation

↓

Design Optimization

↓

Drawing Confirmation

↓

Prototype Fabrication

↓

Prototype Verification

↓

Tooling Manufacture

↓

Pilot Production

↓

Mass Production

Individual projects may add testing, compliance review, or additional prototype rounds. However, this sequence gives buyers a practical framework for planning responsibility, schedule, and approval points.

Frequently Asked Questions

Can I develop an LED strip PCB from a physical sample?

Yes. I can use a physical sample to identify dimensions, component positions, cutting intervals, board width, and visible structural details. However, the sample may not reveal every material or electrical specification. I therefore combine sample inspection with questions about voltage, current, LEDs, production length, materials, and downstream processing.

Do I need Gerber files for a custom LED strip project?

Gerber files are helpful, but they are not always essential at the inquiry stage. A CAD drawing, dimensioned PDF, clear physical sample, or complete product specification may provide a starting point. The engineering team will still need to create and confirm controlled production documents before prototyping and manufacturing.

Can a panel LED PCB be converted directly into a Roll-to-Roll PCB?

It usually requires engineering evaluation rather than simple length extension. The team must review circuit repetition, routing, material movement, interconnection, registration, tooling, and downstream processing. The completed Roll-to-Roll design may preserve the product’s function while using a different manufacturing structure.

How long does custom LED strip PCB development take?

The schedule depends on design complexity, revision rounds, material availability, testing, and tooling. At NWSIRY, a typical custom sample cycle is approximately 7–10 days, while regular production orders commonly require 5–7 days after requirements and production conditions are confirmed. Complex verification can extend the timeline.

What should I test on an LED strip PCB prototype?

I recommend checking dimensions, board width, component pads, polarity, cutting units, solder-pad access, SMT compatibility, electrical operation, LED spacing, profile fit, and waterproofing-process compatibility. The customer should document every issue before approving tooling because changes become more costly after production tools are completed.

Conclusion

Designing an LED strip PCB is not simply a matter of copying copper traces or extending an existing panel. I begin with the customer’s reference, clarify the commercial and manufacturing objective, evaluate design alternatives, confirm materials, and verify drawings and prototypes before tooling. This process reduces avoidable risk while keeping usability and mass production in view.

If you are developing a custom strip or converting an existing design to Roll-to-Roll FPCB production, contact NWSIRY with your sample, Gerber file, CAD drawing, or product requirements. We can help you define the next engineering step.
