Engineering Support for LED Strip Manufacturing
More than FPCB supply. Engineering support for the LED strip manufacturing system.
From circuit layout and copper selection to SMT compatibility and encapsulation fit--NWSIRY reviews the full manufacturing context, not just the board drawing.
- Founded
- 2015
- Equipment
- 9 lines
- Capacity
- 10M m
- Quality
- ISO
In Foshan, China
Roll-to-roll machines
Monthly capacity up to
ISO 9001:2015 certified
Beyond PCB Supply
A LED strip FPCB is not an isolated part. It affects the whole product.
Many suppliers can quote a PCB drawing. Fewer understand how the circuit board will behave after SMT, soldering, splitting, extrusion, encapsulation, and long-term use in the field.
NWSIRY focuses on flexible circuits for LED strip manufacturing. Our engineering support is connected to the problems factories actually face--voltage drop, heat buildup, pad mismatch, inconsistent batches, and sample-to-production gaps.
The goal is not to make the drawing look correct. The goal is to make the product easier to manufacture, test, repeat, and scale.
Support Areas
Engineering support where LED strip projects usually go wrong.
These are the technical areas customers typically need to confirm before sampling, trial production, or repeat orders.
01 · Circuit Layout
Circuit Layout
Working voltage, LED layout, current path, resistor configuration, cutting unit, and strip length--reviewed together.
02 · Copper Thickness
Copper Thickness
Matched to power, current load, board width, and reliability target--not selected by default.
03 · Current Capacity
Current Capacity
Evaluated against required current to avoid voltage drop, heat accumulation, or long-term failure risk.
04 · Pad Design
Pad Design
Pad position, size, and soldering stability confirmed for the actual SMT and long-board production process.
05 · SMT Compatibility
SMT Compatibility
Solder paste printing, reflow, splitting, and batch repeatability reviewed before production begins.
06 · Extrusion & Encapsulation
Extrusion & Encapsulation
FPCB design and material choice reviewed for bending, extrusion, and finished strip durability.
From Requirement to Mass Production
A practical engineering path before volume production.
Five stages, each with a clear output--so every team member knows what has been confirmed and what comes next.
-
01
Requirement Input
Voltage, width, power, LEDs per meter, cutting unit, and application.
-
02
FPCB Review
Circuit layout, copper thickness, current capacity, and pad design confirmed.
-
03
Process Match
SMT, soldering, splitting, extrusion, and encapsulation compatibility reviewed.
-
04
Sample & Revision
Sample developed, feedback reviewed, design adjusted for production feasibility.
-
05
Stable Production
Tooling, batch consistency, lead time, inspection, and repeat order support.
Problem Scenarios
When production problems appear, the root cause is rarely visible from the quotation sheet.
A lower PCB price does not help if the strip becomes unstable during SMT, overheats after use, or fails to match the extrusion process. Engineering review identifies these risks before they become repeated complaints.
Inspection & Testing
Electrical · AOI · Voltage Drop · Sample Analysis
Voltage Drop
Uneven brightness from end to end--often linked to current path, copper capacity, or strip length.
Heat Buildup
Excess heat from insufficient copper, high power density, or a layout that was never reviewed for thermal load.
Pad or SMT Issues
Pad position, board stability, and long-board handling affect soldering yield in ways a drawing cannot predict.
Material Mismatch
FPCB, LED, resistor, adhesive, and encapsulation need to be matched as a system--not sourced independently.
Sample-to-Production Gap
A sample that passes once may still fail at scale if tooling, materials, and process details are not locked.
Short-Board Limitations
More weld points, more labor, more connection failure risk--roll-to-roll production removes these variables.
Why It Reduces Risk
Engineering support protects cost, time, quality, and customer trust.
Confirming technical details before tooling and sampling reduces avoidable redesign rounds and production defects at scale.
Fewer Design Revisions
Key FPCB details confirmed before tooling--so redesign rounds stay minimal.
Lower Production Risk
SMT, splitting, extrusion, and encapsulation compatibility reviewed before volume starts.
More Stable Quality
Batch consistency, pad position, and electrical performance aligned from the first order.
Faster Problem Solving
Technical context means issues are located and resolved faster than with price-only communication.
Production
5-7 days
Typical lead time after order confirmation.
Samples
7-10 days
Custom sample lead time, depending on complexity.
Capability
10M m
Monthly capacity, supported by roll-to-roll manufacturing.
Engineering to Production
The engineering review does not end at the drawing. It connects to the production floor.
Every technical decision made during review--copper thickness, pad layout, material choice--has a direct consequence on how the board behaves during SMT, inspection, and repeat production.
Step 1 · Review
Circuit and process review
Voltage, copper, pad design, and downstream process compatibility confirmed before a single meter is cut.
Step 2 · Sample & Test

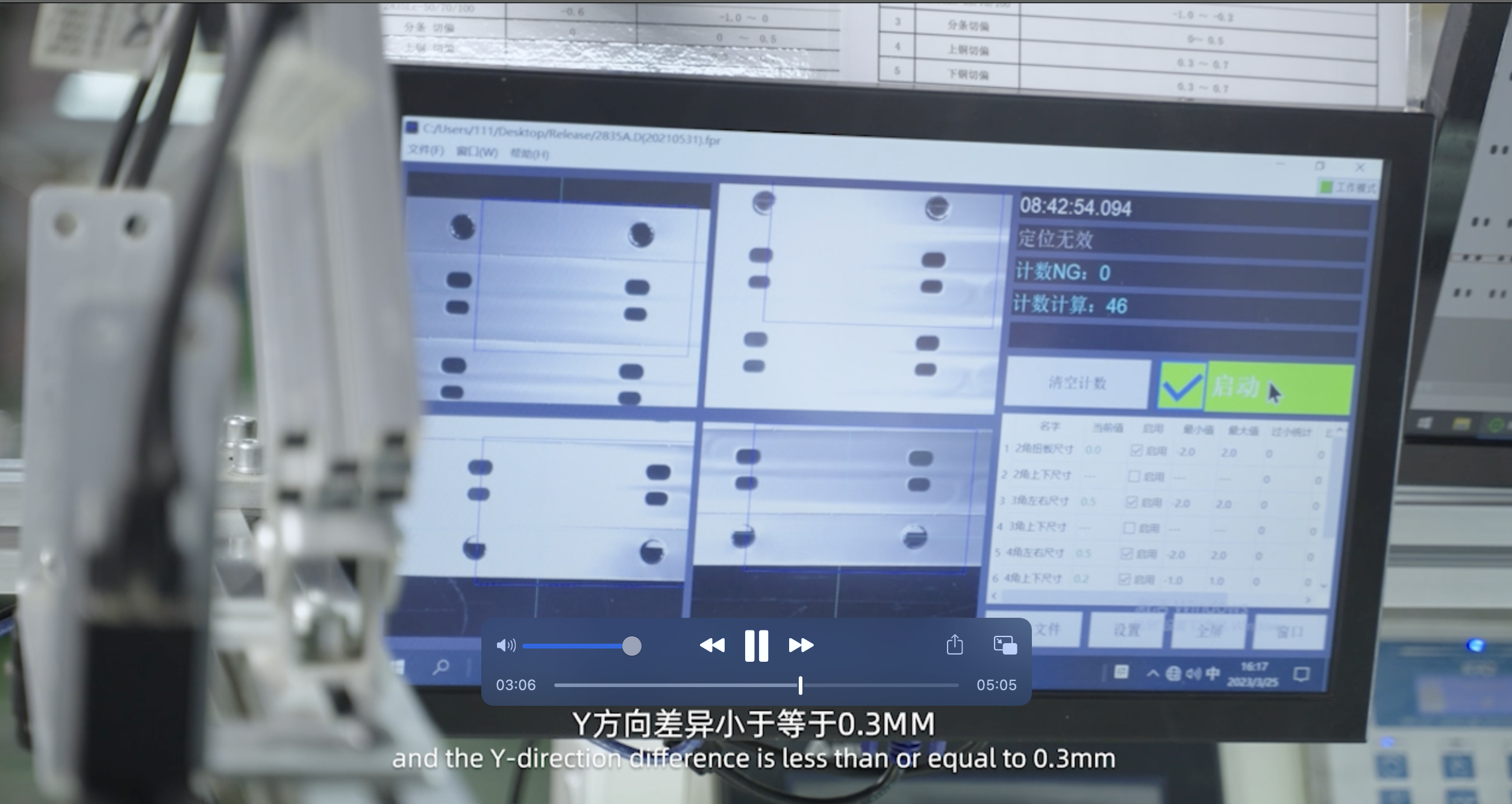

Sample testing and inspection

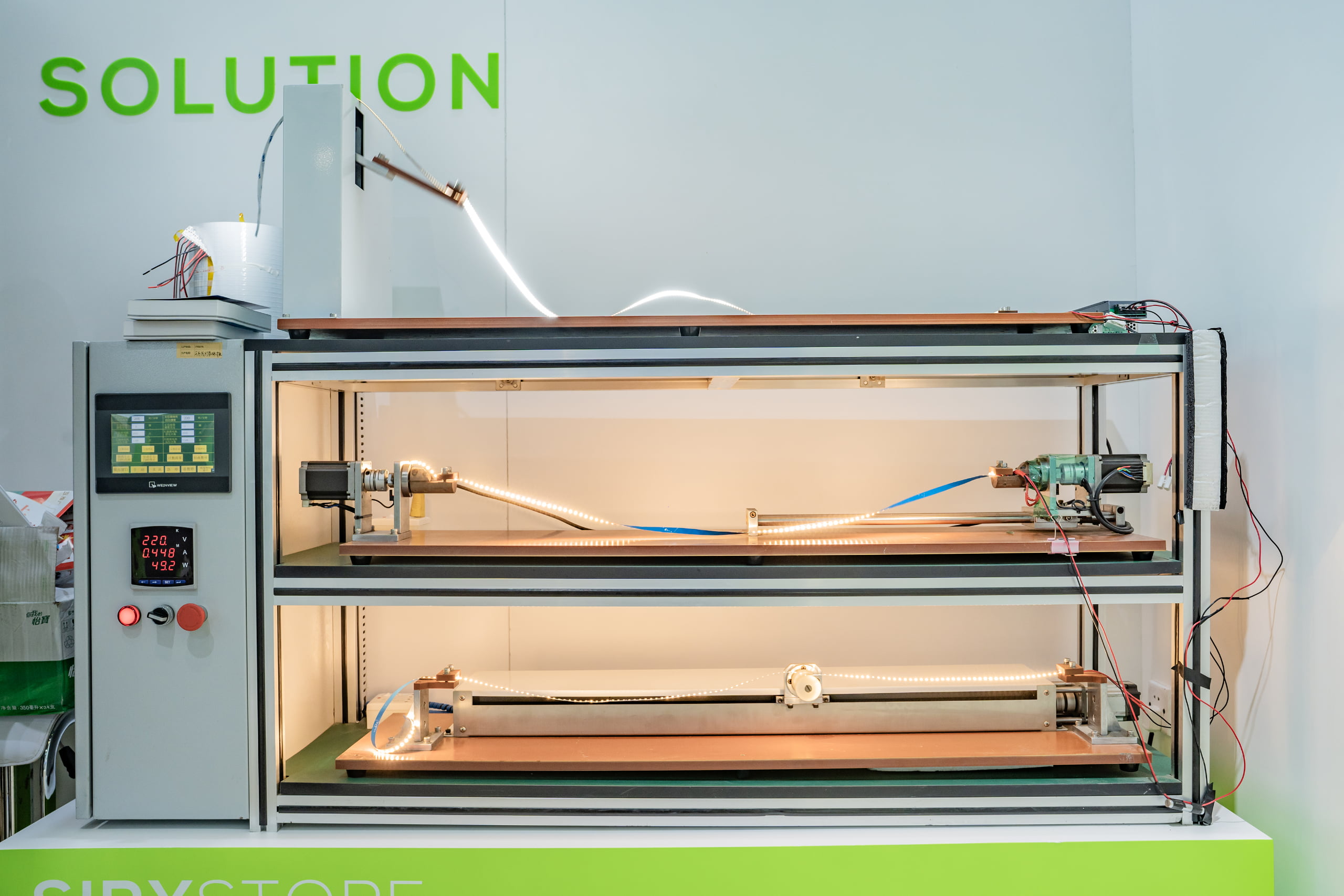

Electrical test, AOI, and voltage drop measurement on samples--before production tooling is committed.
Step 3 · Production

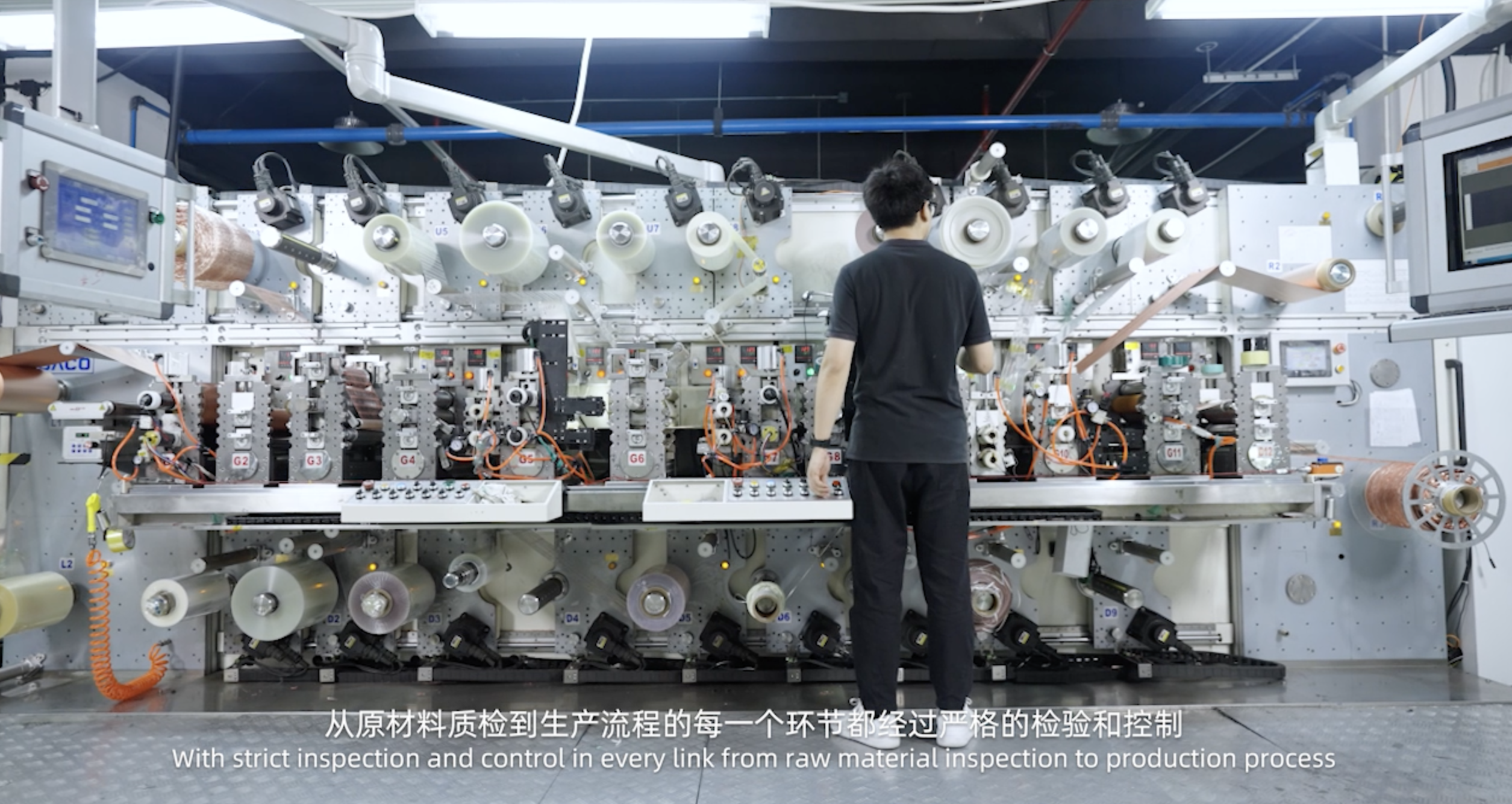

Repeatable roll-to-roll supply
What was confirmed in review becomes the production standard--same spec, same quality, every batch.
Engineering review is not a pre-sales formality. It is the foundation of a stable supply relationship.
When the production team understands the product, lead times are more predictable, batch deviations are caught earlier, and quality issues are resolved faster.
Start Engineering Discussion
Send the product requirement, drawing, sample photo, or production problem you want to solve.
NWSIRY can review the FPCB-related factors behind design, material matching, SMT compatibility, extrusion, encapsulation, voltage drop, heat, and production stability.
Useful information to send
- LED strip type, voltage, width, LEDs per meter, power, and cutting unit
- FPCB drawing, existing sample photo, BOM, or benchmark product
- Current issue: voltage drop, heat, pad, SMT, extrusion, or batch consistency
- Target process: SMT, soldering, splitting, extrusion, encapsulation, or packaging
- Expected order quantity, target lead time, and market application
