LED Strip FPCB Products & Custom Circuit Solutions
Flexible PCB products for LED Strip manufacturers, from standard to custom.
NWSIRY manufactures LED Strip FPCB, roll-to-roll physical-cutting FPCB, and customized circuit boards for low-voltage, high-voltage, COB, high-density, CCT, RGB, and special LED Strip applications.
- Founded
- 2015
- Equipment
- 9 lines
- Capacity
- 10M m
- Lead Time
- 5-7 days
In Foshan, China
Roll-to-roll machines
Monthly capacity up to
Regular after confirmation
Product Categories
Product capability organized by real LED Strip manufacturing needs.
Customers usually do not need a long model list first. They need to know which FPCB direction fits their voltage, application, production process, and market positioning.

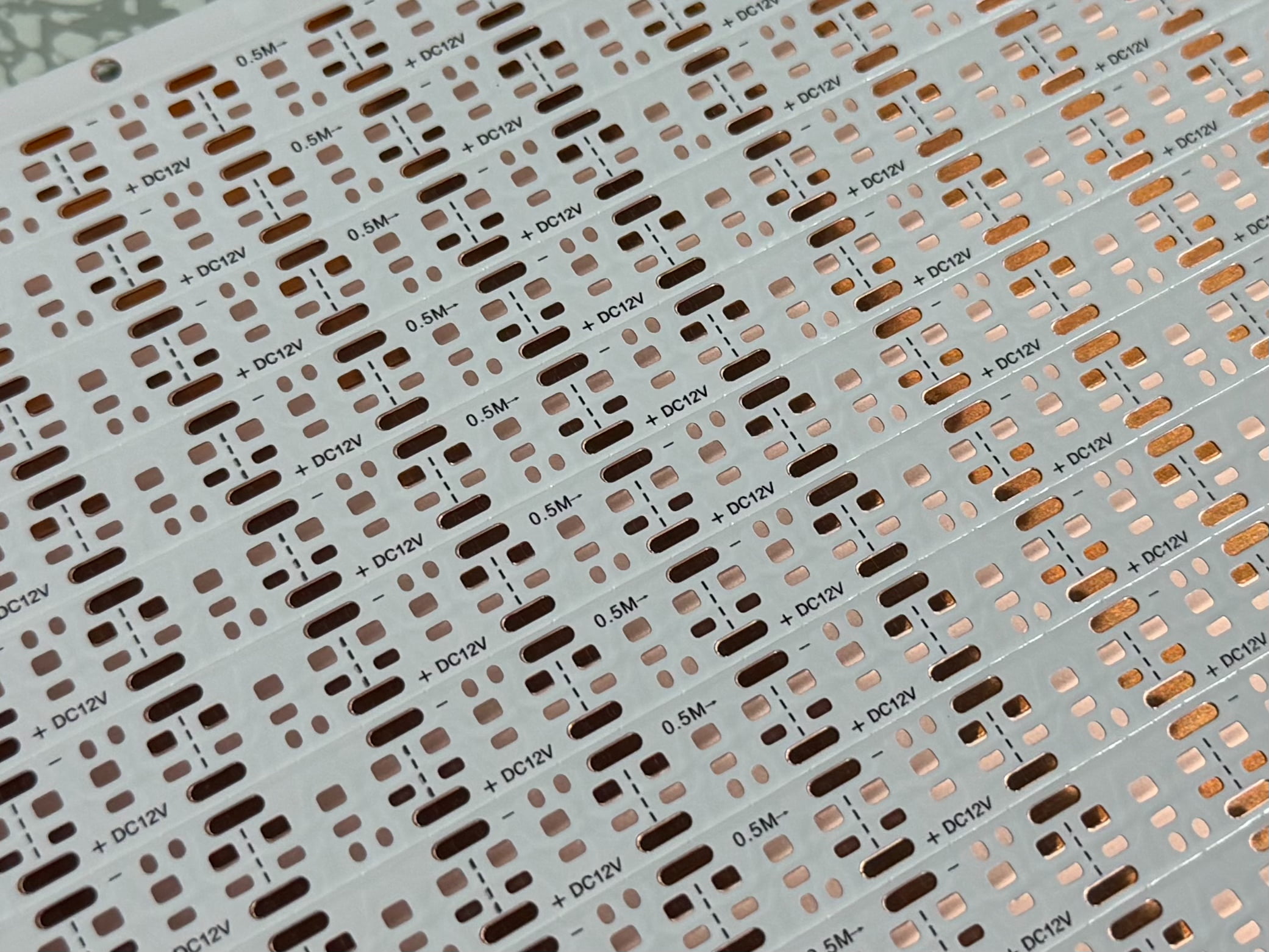

LED Strip FPCB
Flexible printed circuit boards for 12V, 24V, 220V, low-voltage, high-voltage, COB, CCT, RGB, RGBW, high-density, dot-free, and special LED Strip products.
- Low-voltage 12V / 24V series
- High-voltage 220V series
- COB, high-density, CCT, RGB and RGBW
Category 02

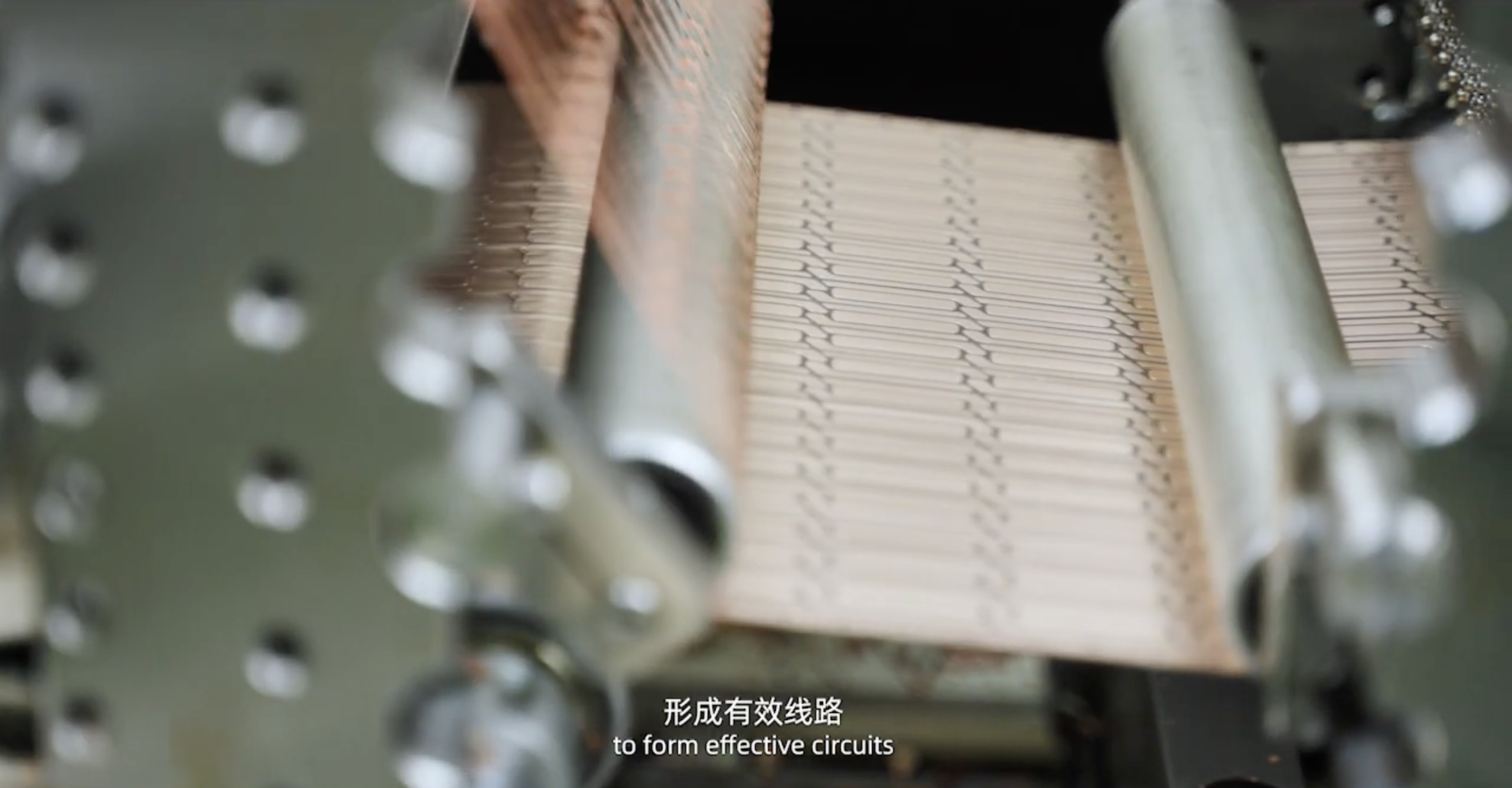

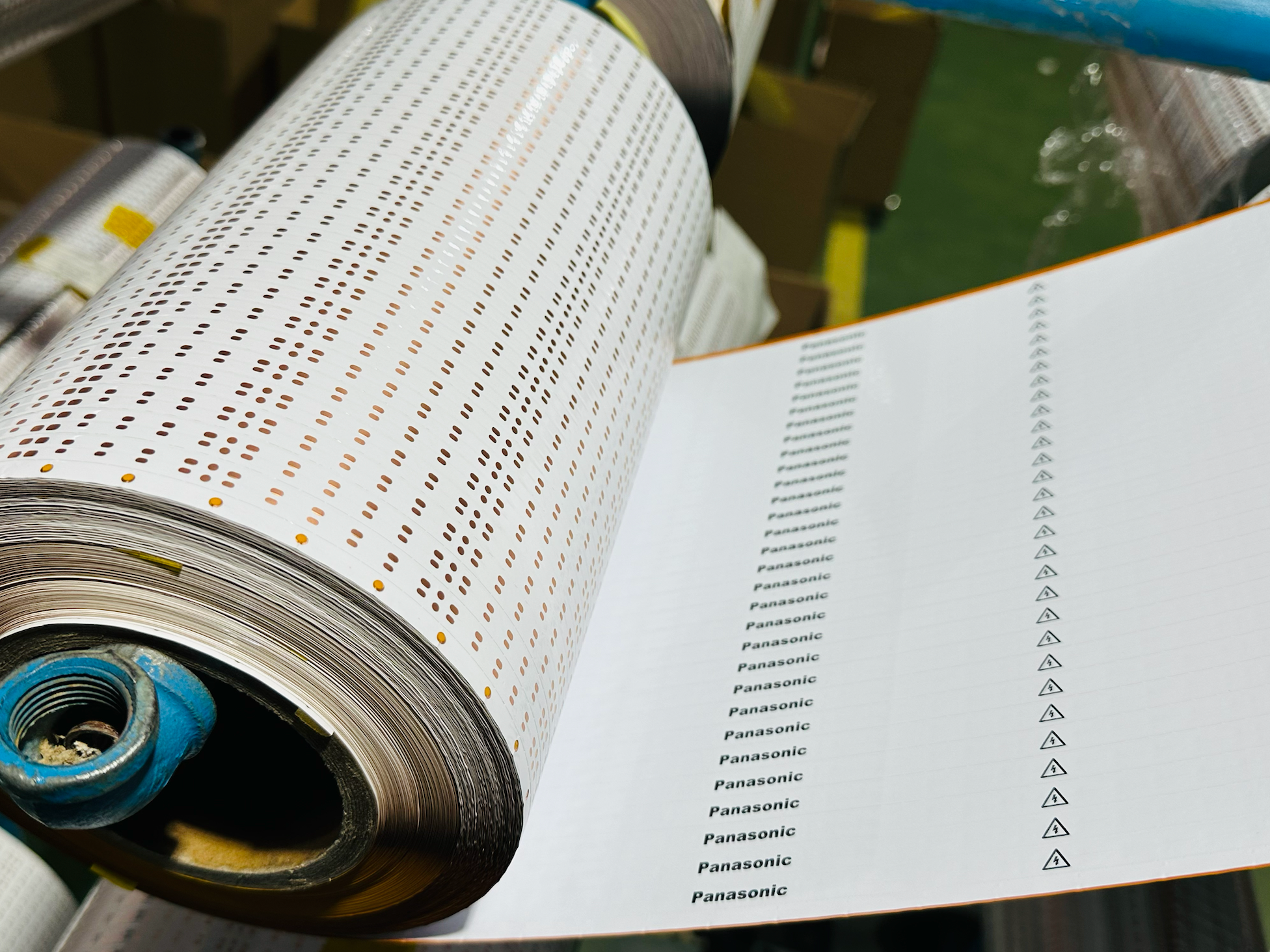

Roll-to-Roll Physical-Cutting FPCB
Continuous FPCB manufacturing designed for long-length LED Strip production, fewer manual connection points, and more efficient volume supply.
- Suitable for high-volume LED Strip production
- Supports long-length continuous manufacturing
- Designed around LED Strip process compatibility

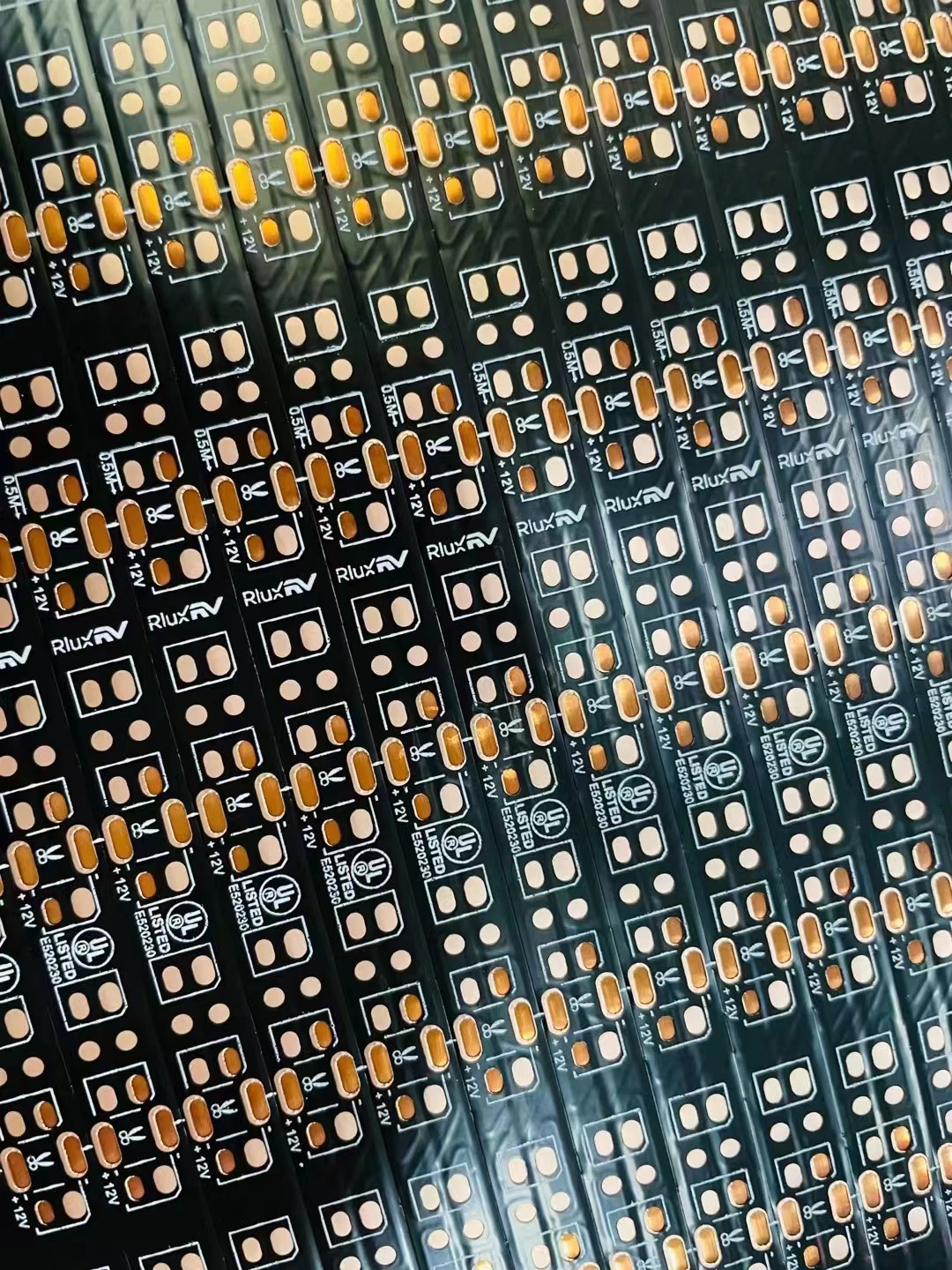

Custom FPCB
Customized circuit boards based on voltage, board width, LED density, power, copper thickness, pad design, cutting unit, material structure, and production method.
- Custom layout and pad design
- Cu+Cu and AL+CU material discussion
- SMT, extrusion and encapsulation compatibility
Typical Product Directions
Six common FPCB directions for LED Strip manufacturing.
Match your product type to the right FPCB direction before requesting a quote or sample.

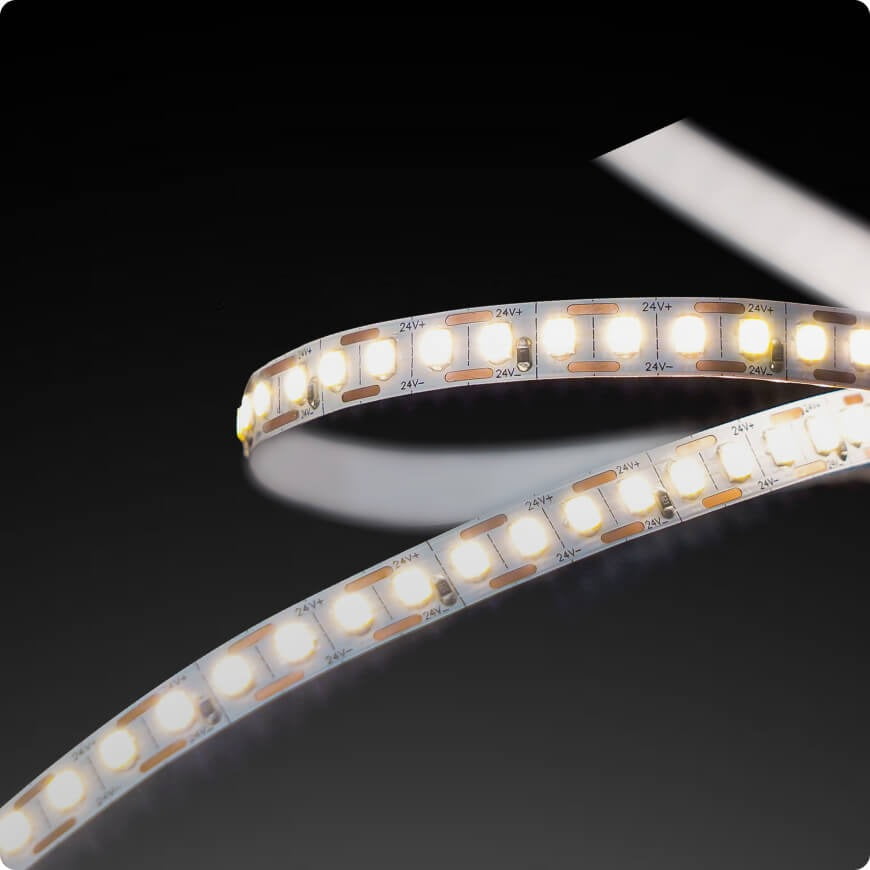

Low Voltage
12V / 24V DC series for cabinet, linear, retail and project lighting.
12V · 24V · DC

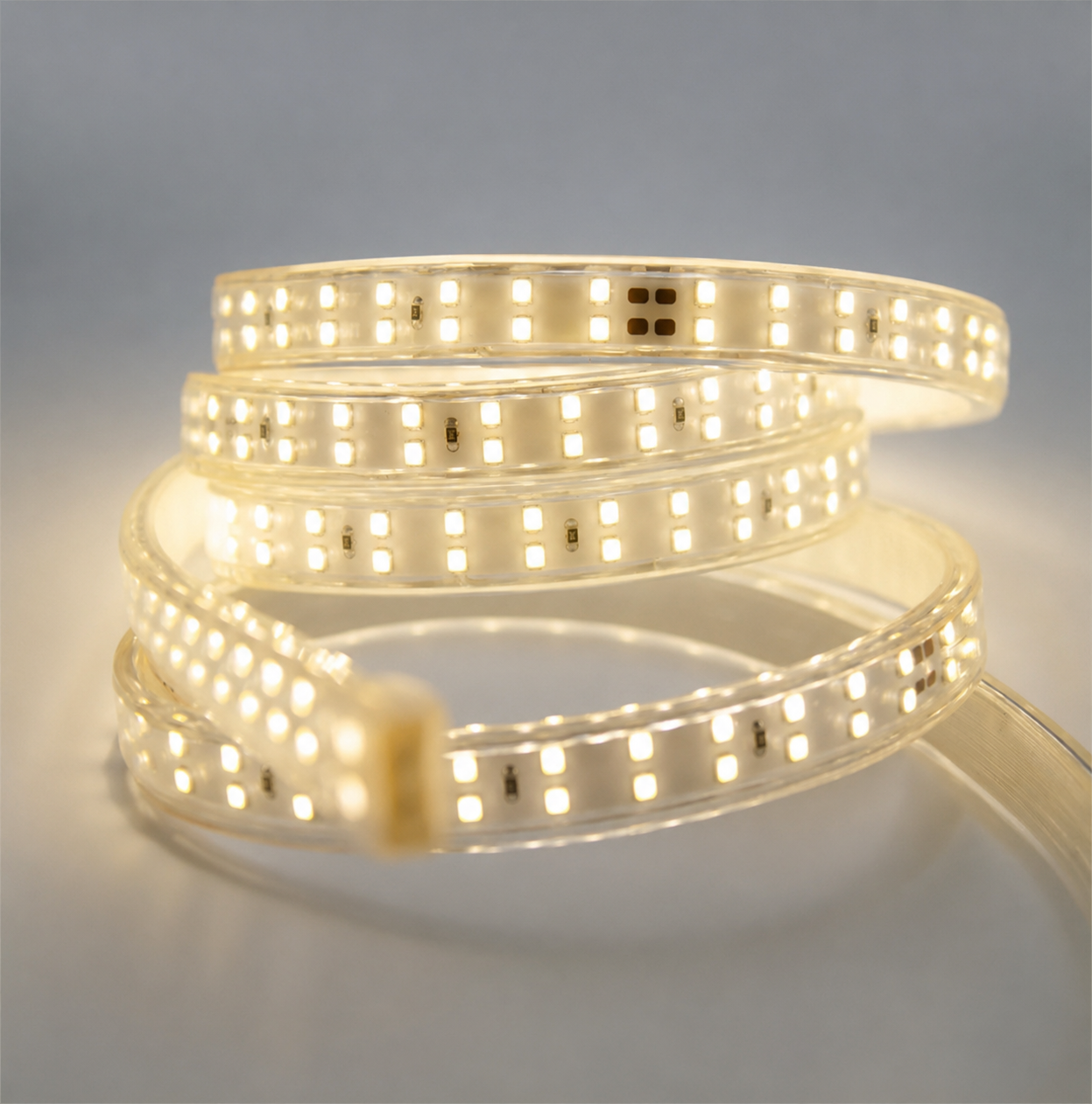

High Voltage
220V AC series for longer runs, simplified install, driver-free applications.
110V · 220V · AC

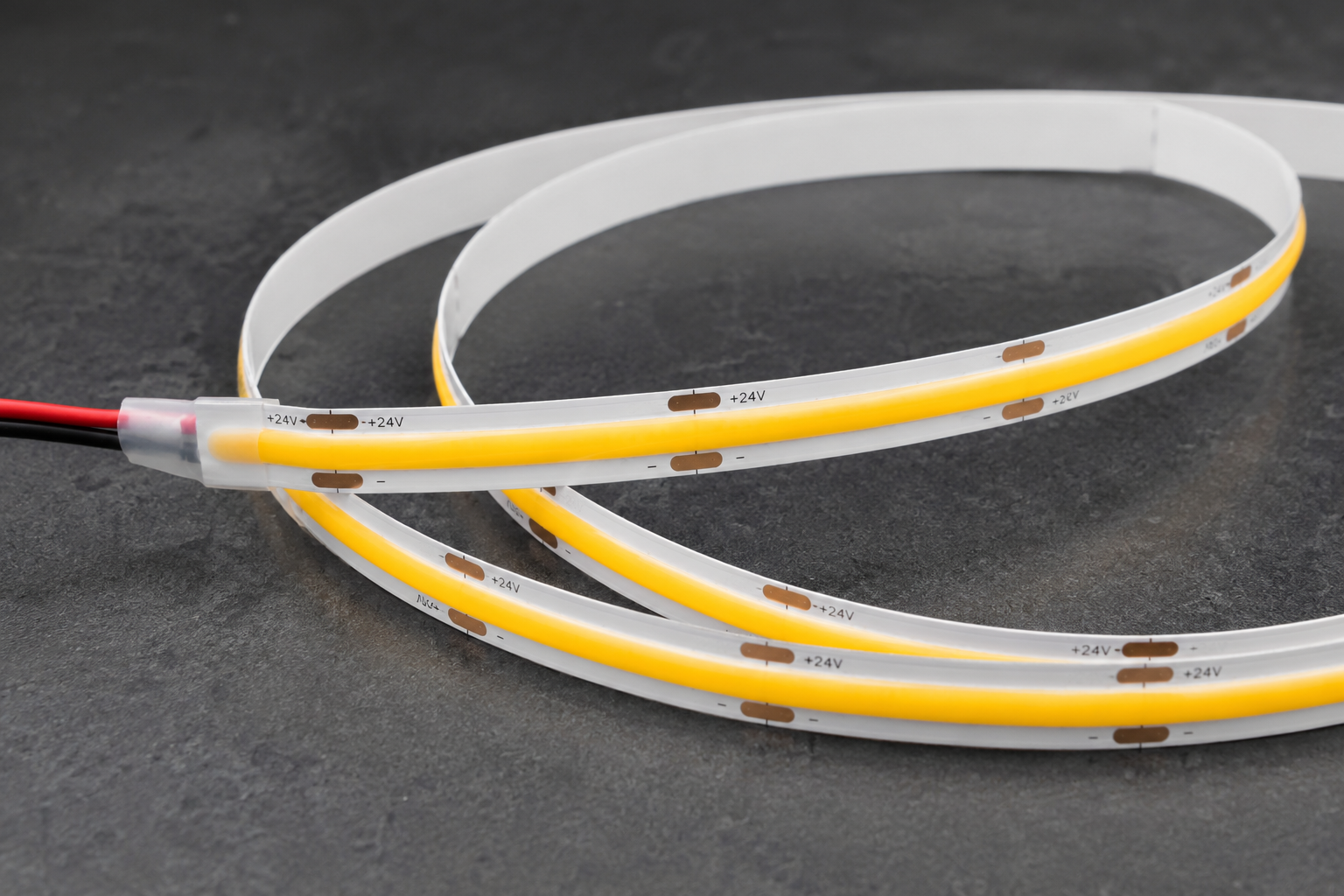

COB
Chip-on-board strip with continuous dot-free lighting and high-density layout.
Dot-Free · High Density

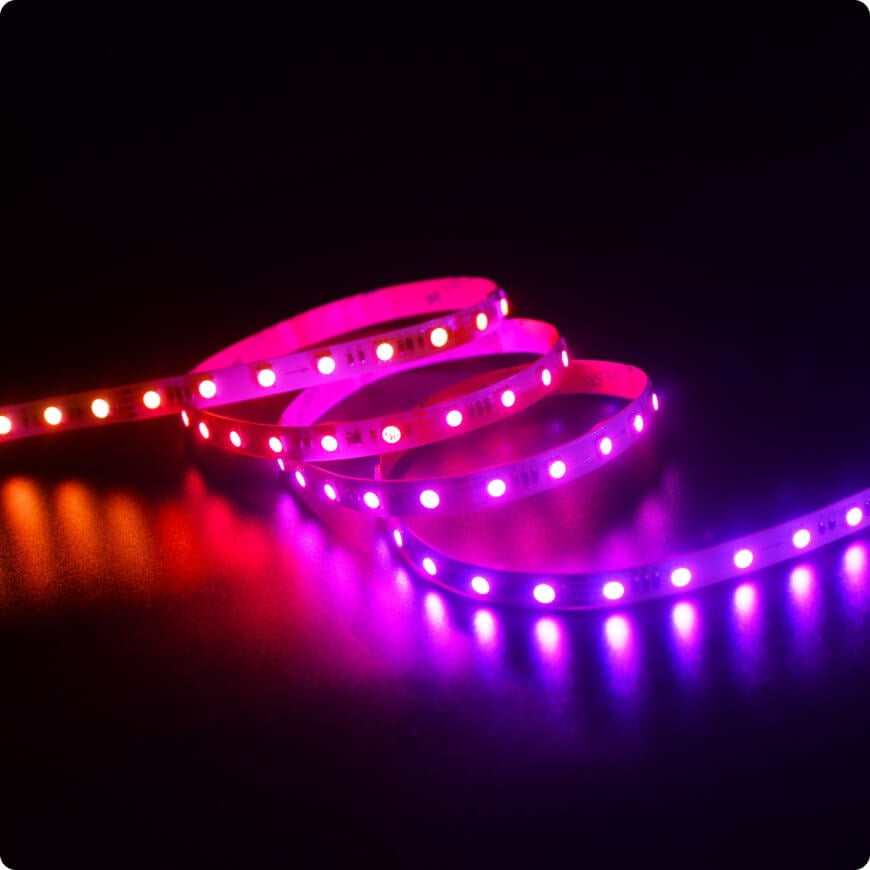

CCT / RGB
Tunable white, RGBW, and smart control strip circuit boards.
Multi-channel · Smart

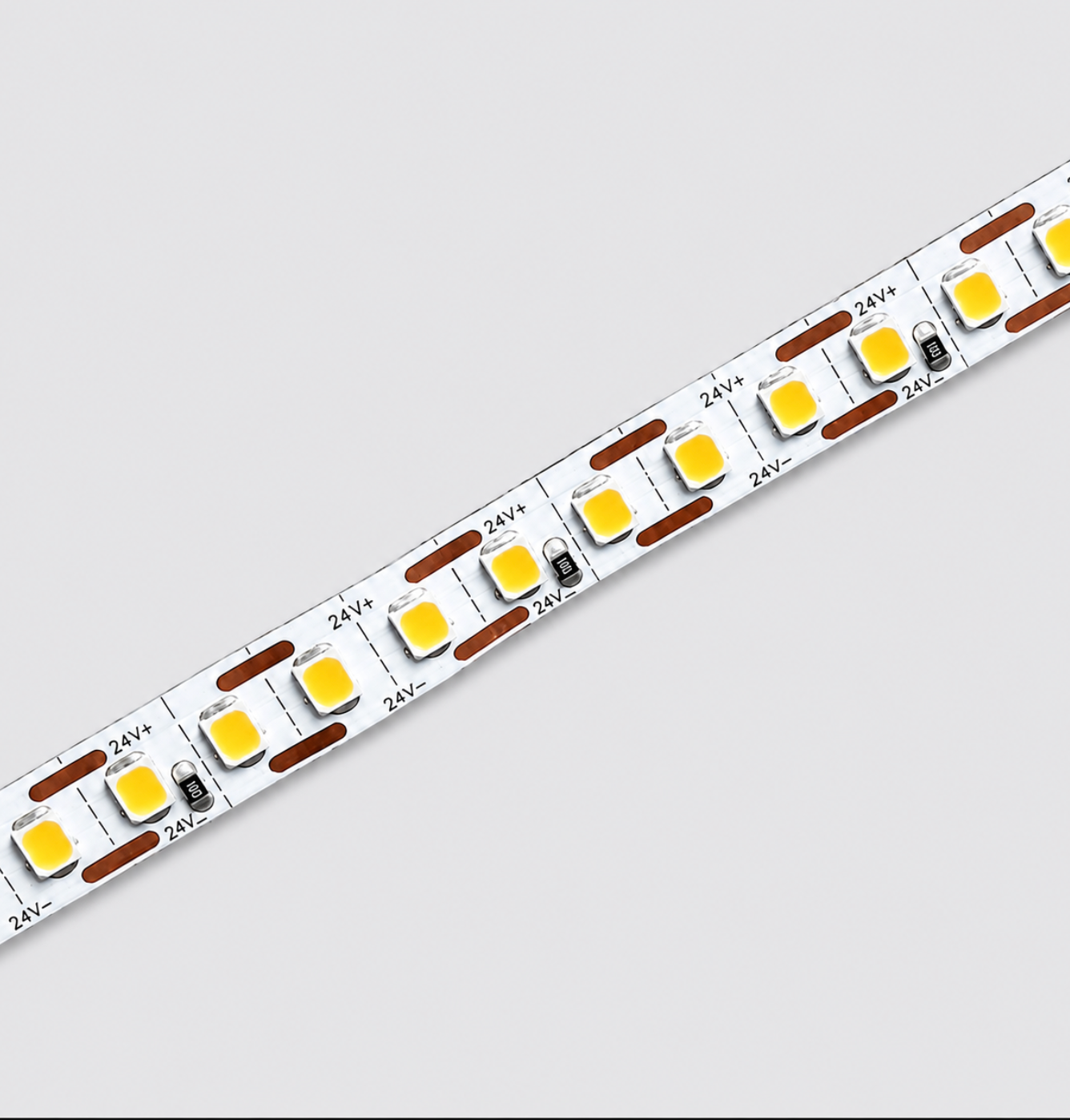

Free Cut
Short cutting unit for flexible installation lengths and reduced waste.
Short Unit · Flexible

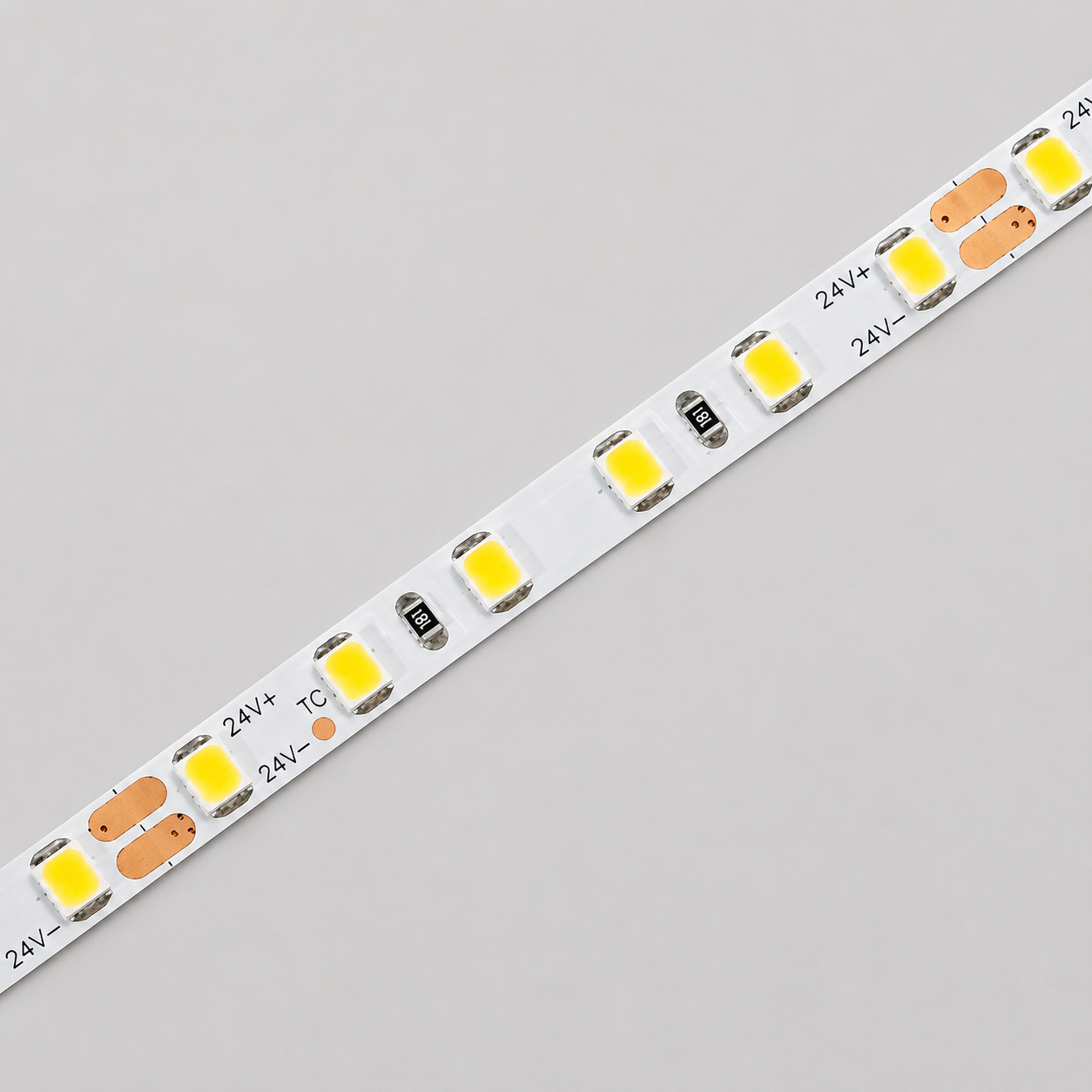

Subsize
Narrow board width for compact profiles, slim extrusions, and space-limited applications.
4.8mm · 5mm · 6mm
How to Choose PCB Type
Start from product purpose, not from a model number.
Match your application scenario to the recommended FPCB type and key parameters below.
| Application Scenario | Recommended Type | Key Parameters to Confirm |
|---|---|---|
| Cabinet lighting, linear lighting, retail display, furniture, project applications |
Low Voltage
12V / 24V DC |
Voltage, board width, LED density, cutting unit, copper thickness, power per meter, current capacity |
| Long-run installation, simplified wiring, AC-direct LED Strip, driver-free applications |
High Voltage
110V / 220V AC |
Voltage, cutting unit, resistor configuration, material structure (Cu+Cu or AL+CU), constant current or not, market standard |
| Dot-free continuous lighting, high-density LED layout, COB strip product lines |
COB
Chip-on-Board |
LED package, pad layout, board width, copper thickness, power, thermal reliability, SMT and reflow compatibility |
| Tunable white, color-changing, smart control, decorative and architectural lighting |
CCT / RGB
Multi-channel |
Channel layout, pad design, resistor configuration, IC or control requirement, board width, production compatibility |
| Flexible installation lengths, short-unit cutting, minimal waste, custom-length projects |
Free Cut
Short Cutting Unit |
Cutting unit length, voltage, LED density, pad position, current per segment, voltage drop per unit |
| Slim profiles, compact extrusions, narrow-channel fixtures, space-limited installations |
Subsize
Narrow Board |
Board width (4.8mm / 5mm / 6mm / 6.8mm), LED package, pad design, current capacity, heat behavior, extrusion fit |
| Non-standard voltage, special pad layout, unique material structure, or OEM product development |
Custom
Engineered to spec |
Full BOM requirement, drawing or sample, target process (SMT / extrusion / encapsulation), volume, and market region |
Not sure which type fits your product? Share your voltage, LED package, width, and application--our team can recommend the right direction.
Ask for a recommendationCustomization Options
Custom FPCB is where product performance and manufacturing reality meet.
NWSIRY can support customized LED Strip FPCB discussion from product requirement to manufacturable circuit structure. The goal is not only to match a drawing, but to make the FPCB work with the full LED Strip process.

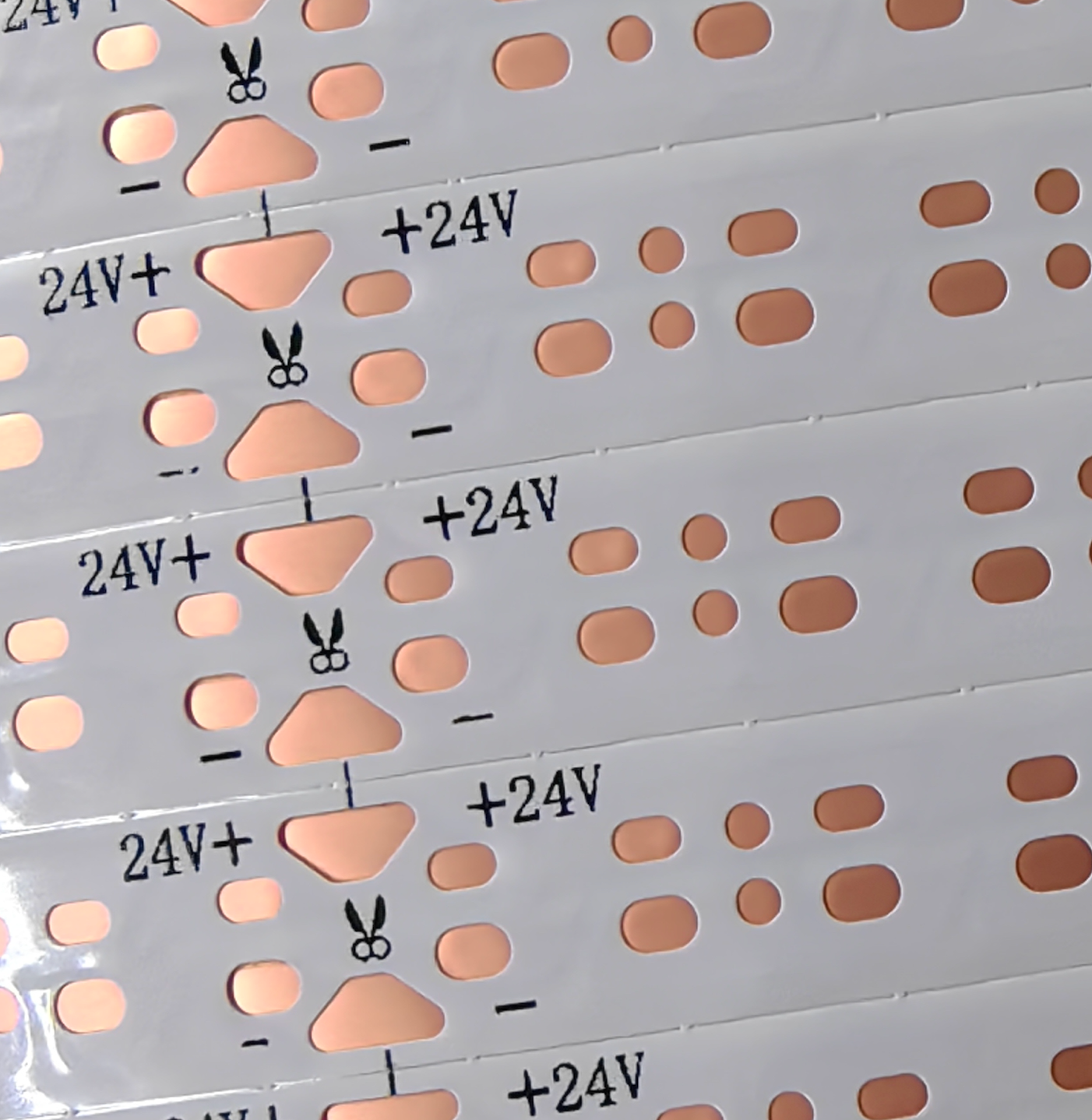

Sample · Pad Detail

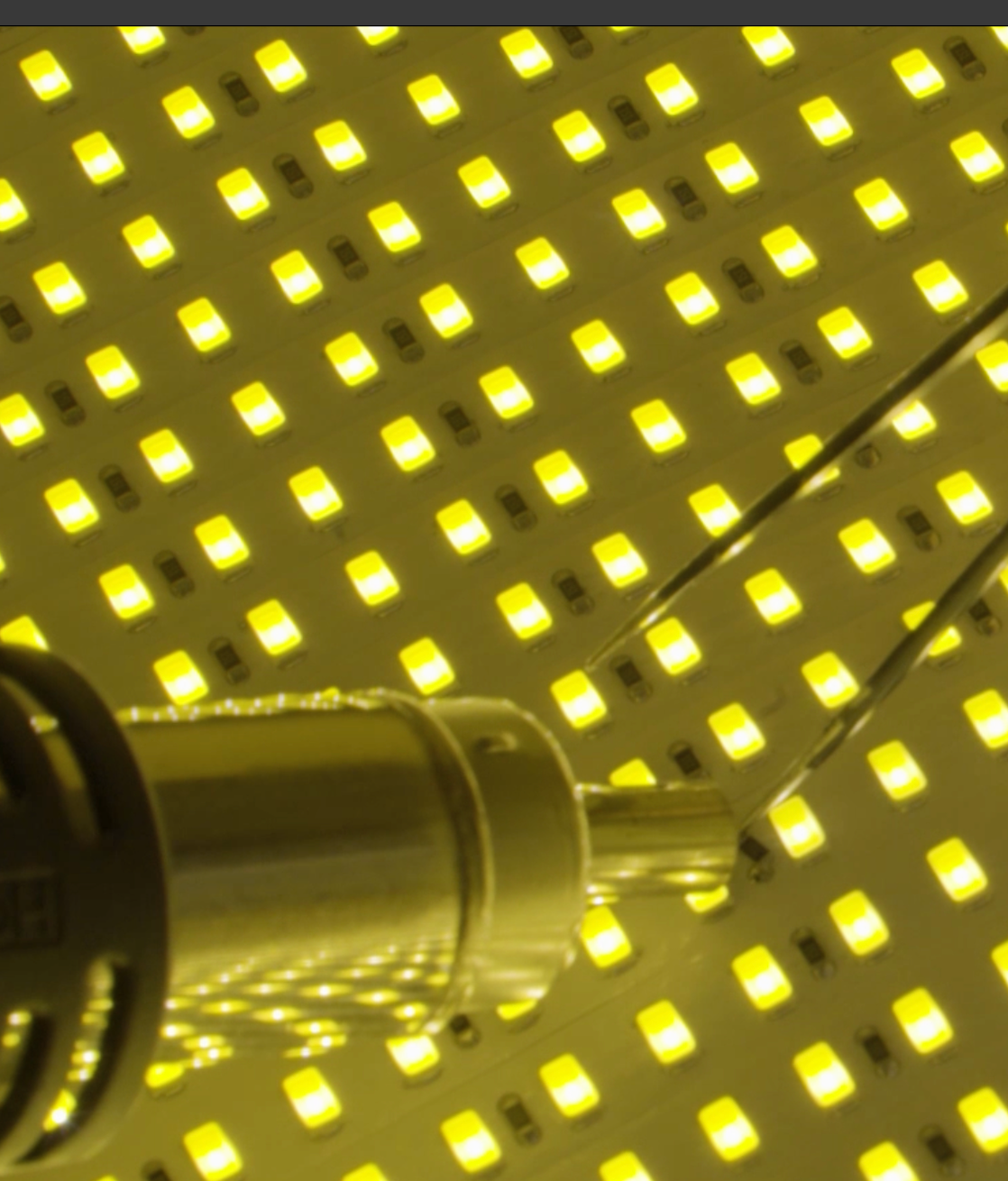

Board Width · Dimensions
Electrical Parameters
12V, 24V, 220V, current capacity, power, resistor configuration, and voltage-drop target.
Physical Structure
Board width, copper thickness, cutting unit, pad position, LED density, and circuit layout.
Material Structure
Cu+Cu, AL+CU discussion, PET layers, solder mask, adhesive, and application environment.
Process Compatibility
Solder paste printing, SMT placement, reflow soldering, splitting, extrusion, encapsulation, and packaging.
Manufacturing Capability
Product selection is only useful when production can repeat it reliably.
NWSIRY operates a specialized manufacturing facility for LED Strip FPCB products, supporting both customized development and volume production.
9
Roll-to-roll machines
Supports continuous FPCB manufacturing for long-length LED Strip production.
10M m
Monthly capacity up to
Supports repeat supply planning for high-volume LED Strip factories.
5-7 days
Regular lead time
Usually after technical specifications, samples, and terms are confirmed.
7-10 days
Sample lead time
Typical custom sample cycle, depending on design complexity and revisions.
Factory
2,000 m²
Specialized facility in Foshan, China.
MOQ
3,000 m
Standard MOQ per model, depending on design and material conditions.
Quality System
ISO 9001
ISO 9001:2015 certified · UL 796F E520230 · RoHS-compliant options.
Engineering Support Behind Products
A product page should help buyers choose correctly, not just list models.
NWSIRY product support is connected to LED Strip manufacturing details: circuit layout, copper thickness, current capacity, pad design, SMT compatibility, extrusion, encapsulation, voltage drop, heat, and batch consistency.
Circuit Layout
Working voltage, LED layout, current path, resistor configuration, and cutting unit.
Copper & Current
Copper thickness, current capacity, heat behavior, voltage drop, and reliability target.
Pad & SMT
Pad design, soldering stability, component placement, reflow soldering, and long-board SMT compatibility.
Finished Strip Process
Splitting, extrusion, encapsulation, bending, twisting, and packaging compatibility.
Find the Right LED Strip FPCB
Send your product target, drawing, sample photo, or model requirement.
NWSIRY can help you choose a standard series, adjust an existing model, or develop a custom FPCB for your LED Strip production.
Useful information to send
- Voltage: 12V, 24V, 110V, 220V, or other requirement
- Strip width, LEDs per meter, LED package, power, and cutting unit
- Product type: low-voltage, high-voltage, COB, high-density, CCT, RGB, free cut, subsize, or custom
- FPCB drawing, current sample, product photo, or benchmark model
- Target process: SMT, extrusion, encapsulation, packaging, or finished strip assembly
- Expected order quantity, market region, and target lead time
